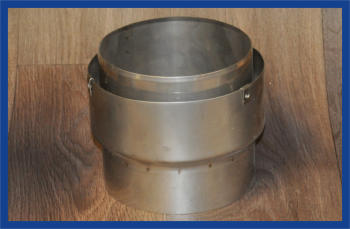

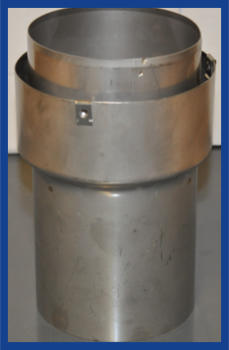

Extended MA & MR Adaptors

Connection between the rigid pipe and the flexible flue liner, but these have an extended spigot tail to allow for height adjustment and for the rigid flue from the boiler / woodstove to be slid up the adaptor to allow for the stove to be removed for replacement or cleaning.

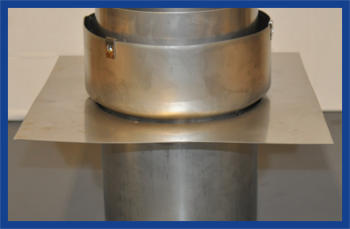

RP Adaptor

Identical construction to the extended MA and MR, but with a square plate fitted to the spigot tail for securing to a standard register plate within the chimney. This allows for a larger hole to be cut in the standard register plate to allow alignment with the stove. The plate is then secured to the standard regsiter plate with rivets or self-drilling screws.

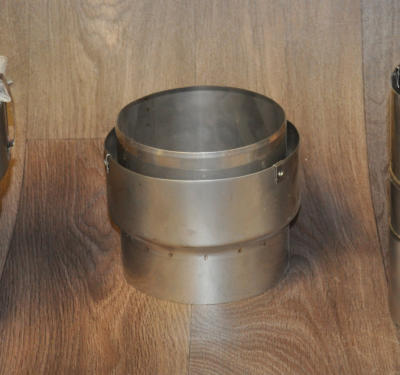

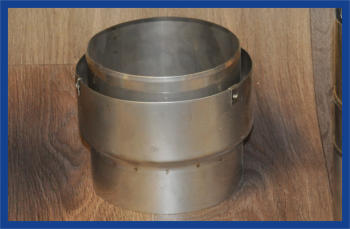

Standard Adaptor

Connection between the rigid flue pipe to the boiler / woodstove and the flexible liner within the existing stack.

Get in touch:

07734 549024

Units 2-4 Dolphin Park Ardglen Road Whitchurch Hampshire RG28 7BB © 2020 Putlock Chimney Systems
ADAPTORS

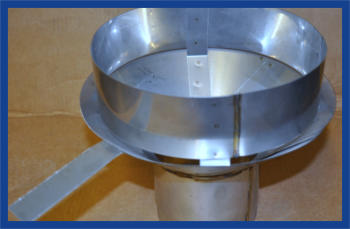

Clayliner Adaptor

Connection between rigid flue to the boiler / woodstove and a clayliner within the existing chimney stack. The two legs each side of the clayliner end are then used for securing to the brickwork.

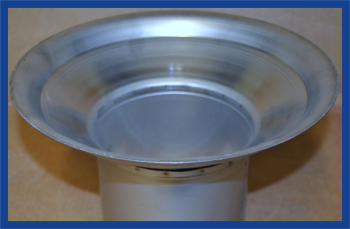

Sump Adaptor

Connection between the rigid flue to the boiler / woodstove and a clayliner within the existing chimney stack. These have longer tails for adjustment and can be used where there is more room around the clay liner for making a fixing to the brickwork through the spinning.

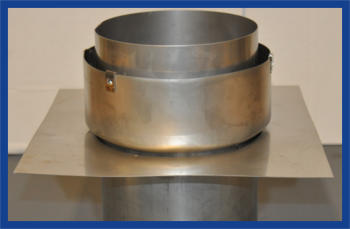

Top Hat Adaptor

Connection between the rigid flue to the boiler / woodstove and top connection to the flexible flue liner with a base securing plate to fit onto a register plate.

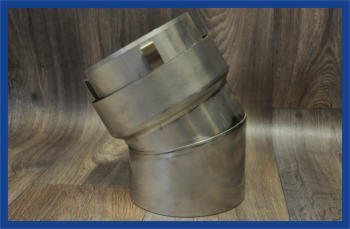

Angled Adaptor

Connection between the rigid flue to the boiler / woodstove and a clayliner within the existing chimney stack. These have longer tails for adjustment and can be used where there is more room around the clay liner for making a fixing to the brickwork through the spinning.
Contact Us | Privacy Policy | Site Map
Certificate No. 51569

07734 549024

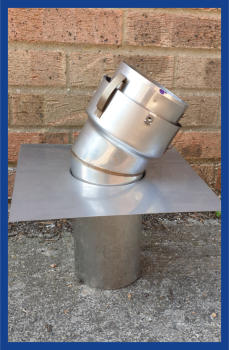

Angled RP Adaptor

Provides a 30° or 45° angle for easy attachment of the liner; the plate is then secured to the standard register plate with rivits or self-drilling screws.

Get in touch:

07734 549024

Units 2-4 Dolphin Park Ardglen Road Whitchurch Hampshire RG28 7BB © 2020 Putlock Chimney Systems Ltd

Extended MA & MR

Adaptors

Connection between the rigid pipe and the flexible flue liner, but these have an extended spigot tail to allow for height adjustment and for the rigid flue from the boiler / woodstove to be slid up the adaptor to allow for the stove to be removed for replacement or cleaning.

RP Adaptor

Identical construction to the extended MA and MR, but with a square plate fitted to the spigot tail for securing to a standard register plate within the chimney. This allows for a larger hole to be cut in the standard register plate to allow alignment with the stove. The plate is then secured to the standard regsiter plate with rivets or self-drilling screws.

Standard Adaptor

Connection between the rigid flue pipe to the boiler / woodstove and the flexible liner within the existing stack.
ADAPTORS

Clayliner Adaptor

Connection between rigid flue to the boiler / woodstove and a clayliner within the existing chimney stack. The two legs each side of the clayliner end are then used for securing to the brickwork.

Sump Adaptor

Connection between the rigid flue to the boiler / woodstove and a clayliner within the existing chimney stack. These have longer tails for adjustment and can be used where there is more room around the clay liner for making a fixing to the brickwork through the spinning.

Top Hat Adaptor

Connection between the rigid flue to the boiler / woodstove and top connection to the flexible flue liner with a base securing plate to fit onto a register plate.
